The SLD1133VS is a red laser diode produced by Sony. It has a wavelength of 650nm and is used in barcode scanners. The product features include small size, low power consumption, and single longitudinal mode.

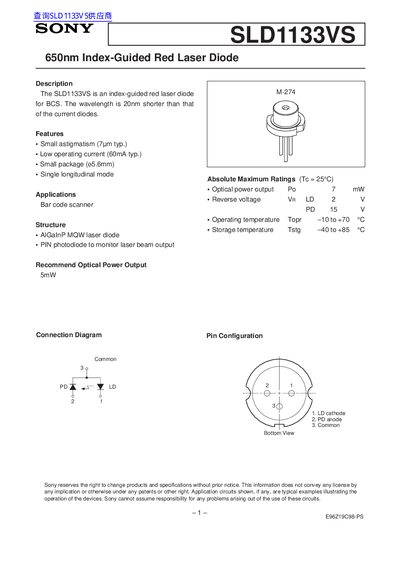

The SLD1133VS is an index‑guided red laser diode designed for barcode scanners and similar applications. It emits at a wavelength of 650 nm (typical range 650‑660 nm) and features low astigmatism (7 µm) and a small 5.6 mm package.
Key specifications include a typical optical output of 5 mW (maximum 7 mW), operating current around 60 mA (50‑70 mA range), reverse voltage of 2 V, and operating temperature from –10 °C to +70 °C. The document also provides safety handling instructions, connection diagrams, and detailed electrical and optical characteristic tables.
| Optical power output | 5 mW typ. (max 7 mW) |
|---|---|
| Operating current | 60 mA typ. (50‑70 mA range) |
| Reverse voltage | 2 V |
| Operating temperature | -10 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Package size | 5.6 mm |
| Astigmatism | 7 µm typ. |
The typical operating current is about 60 mA, with a range of 50 mA to 70 mA.
The reverse voltage rating is 2 V.
