The SLD1121VS is a red laser diode designed for bar code readers and measuring instruments. This features a small package and lower power consumption.
The SLD1121VS is a 5 mW red laser diode intended for barcode readers and measuring instruments. It features a small 5.6 mm package, low operating current, and a typical wavelength of 670 nm.

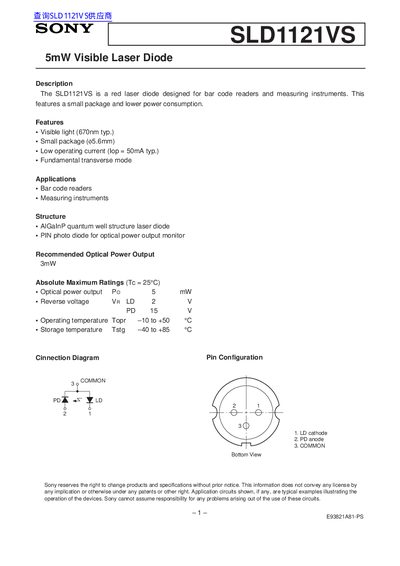

The document lists electrical and optical parameters, pin configuration, absolute maximum ratings, and package dimensions, along with characteristic curves for optical power, monitor current, and temperature dependence.
| Typical wavelength | 670 nm |
|---|---|
| Typical operating current | 50 mA |
| Maximum optical output power | 5 mW |
| Package size | 5.6 mm |
| Reverse voltage | 2 V |
| Operating temperature range | -10 °C to +50 °C |
The typical wavelength is 670 nm.
The diode can output up to 5 mW of optical power.
The typical operating current is 50 mA.
The package measures 5.6 mm.
