SMD 0805 + 1206 platinum and nickel thin-film chip sensor is a platinum or nickel temperature sensor designed for use in markets with a high degree of automation in their production line. This thin-film sensor combines the excellent characteristics of platinum or nickel sensors such as accuracy, long-term stability and reproducibility with the advantages of large-scale production and an optimal price/performance ratio.

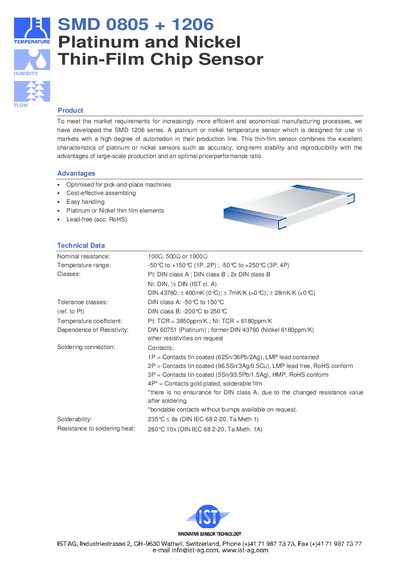

The SMD 0805 + 1206 thin‑film chip sensor from IST is a platinum or nickel temperature sensor designed for high‑volume, automated production lines. It combines the accuracy and stability of Pt/Ni elements with cost‑effective, lead‑free construction suitable for pick‑and‑place assembly.
Key data include temperature ranges of –50 °C to +150 °C (1‑P, 2‑P) and –50 °C to +250 °C (3‑P, 4‑P), TCR values of 3850 ppm/K (Pt) and 6180 ppm/K (Ni), and compact package dimensions of 2.0 × 1.2 mm (0805) and 3.2 × 1.6 mm (1206). The sheet also lists soldering limits, contact options, response times, self‑heating, and long‑term drift specifications.
| Nominal resistance options | 100, 5000 or 1000Q |
|---|---|
| Temperature range | -50 °C to +150 °C (1P, 2P); -50 °C to +250 °C (3P, 4P) |
| Tolerance classes (Pt) | DIN class A, DIN class B, 2× DIN class B |
| Tolerance classes (Ni) | DIN, ¥% DIN (IST cl. A) |
| Temperature coefficient (TCR) | Pt: 3850 ppm/K, Ni: 6180 ppm/K |
| Soldering temperature limit | 235 °C < 8 s |
| Long‑term stability (drift) | Pt: 0.04 % after 1000 h at 130 °C; Ni: 0.1 % after 1000 h at 130 °C |
| Response time in water (0.4 m/s) | 0.258 s (1206), 0.28 s (0805) |
| Response time in air (1 m/s) | 5.08 s (1206), 4.08 s (0805) |
| Measuring current | 0.5 mA (100Q), 0.4 mA (500Q), 0.3 mA (10000) |
| Self‑heating (water) | 40 mW/°C |
| Package dimensions (Pt) | 0805: 2.0 × 1.2 mm, 1206: 3.2 × 1.6 mm |
| Package dimensions (Ni) | 1206: 3.2 × 1.6 mm |
It operates from –50 °C to +150 °C for the 1‑pin and 2‑pin versions, and up to +250 °C for the 3‑pin and 4‑pin versions.
The platinum version has a TCR of 3850 ppm/K, while the nickel version has a TCR of 6180 ppm/K.
In water at 0.4 m/s flow the response time is 0.258 s (1206) and 0.28 s (0805); in air at 1 m/s flow it is 5.08 s (1206) and 4.08 s (0805).
The 0805 package measures 2.0 × 1.2 mm and the 1206 package measures 3.2 × 1.6 mm.
