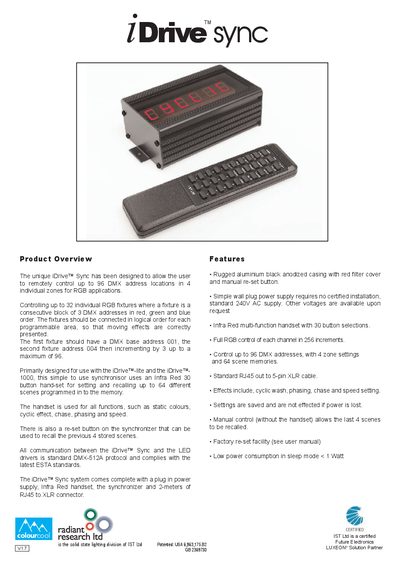

The iDrive Sync is a unique product designed for remote control of up to 96 DMX address locations for RGB applications. It can control up to 32 individual RGB fixtures, where each fixture consists of a consecutive block of 3 DMX addresses. The product is primarily designed for use with the iDrive-lite and the iDrive-1000, and uses an Infra Red 30 button hand-set for setting and recalling up to 64 different scenes programmed in to the memory.
The iDrive™ Sync is a solid‑state lighting controller that lets a user remotely manage up to 96 DMX address locations (32 RGB fixtures) in four separate zones. It uses a 30‑button infrared handset for selecting static colours, cyclic effects, chases, phasing, speed and scene recall, with a manual reset button for the last four stored scenes.
The unit includes a rugged anodized aluminium case, a wall‑plug power supply (240 V AC, 60 Hz), RJ45‑to‑5‑pin XLR output, and a 7‑segment red LED display. Electrical specs include a 14 W maximum consumption, 12 V DC output at 500 mA, and less than 1 W sleep‑mode power. Dimensions are 2170 × 90 × 55 mm and weight 430 g. The handset is powered by two AA batteries (not supplied).
| Sleep‑mode Power Consumption | < 1 W |
|---|---|
| DMX Address Locations | 96 channels (32 × RGB fixtures) |
| Number of Zones | 4 |
| Scene Memory | 64 scenes |
| Dimensions (Synchroniser) | 2170 × 90 × 55 mm |
| Synchroniser Weight | 430 g |
| Handset Battery | 2 × AA (not included) |
It can control up to 96 DMX address locations, which corresponds to 32 RGB fixtures.
The device can store up to 64 individual scenes.
The handset runs on two AA batteries, which are not included with the unit.
