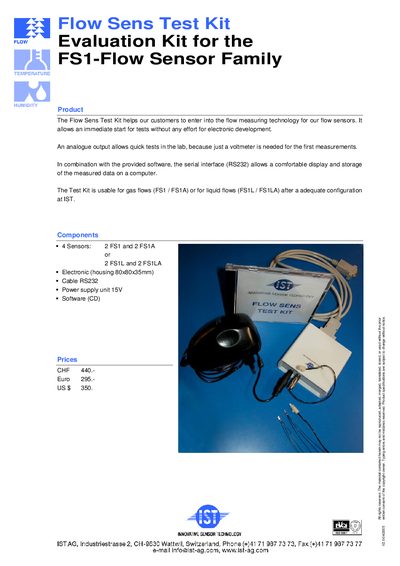

Flow Sens Test Kit is a evaluation kit for FS1 series flow sensors, which helps customers to quickly test flow sensors. The kit includes 4 sensors, electronic components, power adapter and software, supports gas flow and liquid flow two test modes.
The Flow Sens Test Kit enables customers to start testing flow‑measuring technology without any electronic development effort. An analogue output allows quick lab tests with just a voltmeter, while the RS‑232 serial interface and supplied software let users display and store measured data on a computer.
The kit includes four sensors (either 2 FS1 + 2 FS1A for gas or 2 FS1L + 2 FS1LA for liquid), an electronic housing (80 × 80 × 35 mm), an RS‑232 cable, a 15 V power supply unit and a software CD.
| Output type | Analogue |
|---|---|
| Interface | RS‑232 serial |
| Power supply | 15 V |
| Housing dimensions | 80 × 80 × 35 mm |
| Sensors included | 4 sensors: 2 FS1 + 2 FS1A or 2 FS1L + 2 FS1LA |
| Software | Provided on CD |
The kit can be used for gas flows (FS1 / FS1A) or for liquid flows (FS1L / FS1LA) after configuration at IST.
Measured data can be displayed and stored on a computer via the RS‑232 serial interface using the supplied software.
Only a voltmeter is required to read the analogue output for initial tests.
