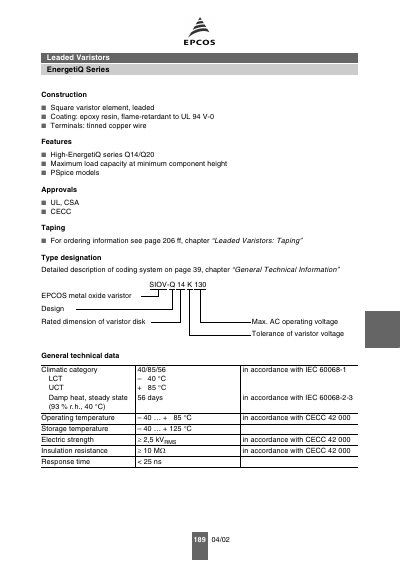

The document introduces a Square varistor element product from EPCOS, which features the High-EnergetiQ series Q14/Q20, maximum load capacity, and approvals from UL, CSA, and CECC.
The EnergetiQ series varistors are leaded metal‑oxide devices with epoxy resin coating and UL 94 V‑0 flame‑retardant certification. The SIOV‑Q 14 K 130 model offers a compact height, high load capacity and a response time under 25 ns.
The document lists detailed technical data, including maximum ratings, characteristic curves, dimensional drawings and ordering information for each variant in the series.
| Response time | < 25 ns |
|---|---|
| Insulation resistance | 10 MΩ |
| Electric strength | 2.5 kVRMS |
| Varistor disk diameter | 10.0 mm |
The response time is less than 25 ns.
The insulation resistance is 10 MΩ.
