The PCT 230/24-0,5 is a product of the PCT series. It is a single-phase primary switched mode power supply. The output voltage is 24V and the rated current is 0.5 A. The product has short-circuit protection, open-circuit protection, high efficiency, thermal overload protection and overload protection.

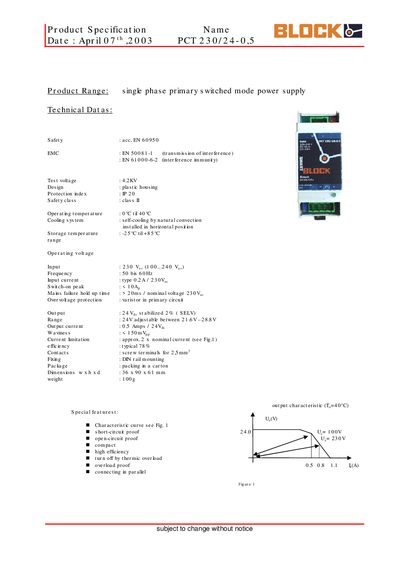

This document provides the technical data for the PCT 230/24-0,5 single‑phase primary switched‑mode power supply. It lists the input voltage range, frequency, current requirements, safety classifications, and environmental operating limits.
Key features include a 24 V output (stabilized 2 % SELV), adjustable output voltage from 21.6 V to 288 V, typical efficiency of 78 %, compact plastic housing, DIN‑rail mounting, and a weight of 100 g. Dimensions are 36 × 90 × 61 mm and the unit is designed for horizontal installation.
| Input voltage | 100‑240 V |
|---|---|
| Frequency | 50‑60 Hz |
| Input current | 0.2 A @ 230 V |
| Output voltage (fixed) | 24 V ±2 % (SELV) |
| Output voltage (adjustable) | 21.6 V‑288 V |
| Typical efficiency | 78 % |
| Dimensions (W×H×D) | 36 × 90 × 61 mm |
The unit operates from 100 V to 240 V AC.
Typical efficiency is about 78 %.
The package measures 36 mm × 90 mm × 61 mm.
