This product is a single-phase primary switch-mode power supply. The rated input voltage is 230 VAC and the rated output voltage is 24 Vdc. The maximum output current is 2.5A. The working temperature is 0 ° C to 40 ° C. The product is small in size, light in weight, efficient and safe.

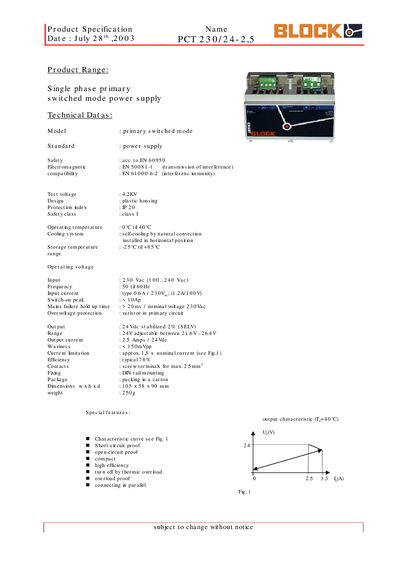

The document provides the product specification for the PCT 230/24-2,5, a single‑phase primary switched mode power supply. It outlines the product range, safety standards, and electromagnetic compatibility requirements.
A detailed list of technical data is included, covering input and output electrical characteristics, operating and storage temperature ranges, physical dimensions, weight, and special features such as high efficiency, short‑circuit proof design, and DIN‑rail mounting.
| Input voltage | 2230 Vac (100..240 Vac) |
|---|---|
| Input frequency | 50 til 60Hz |
| Input current | type O.6A/ 230V,,; (1.2A/100V) |
| Output voltage | 24 Vdc stabilized 2% (SELV) |
| Output current | 12.5 Amps / 24Vde |
| Efficiency | typical 78 % |
| Operating temperature | 0°C til 40°C |
| Storage temperature | 1-25°C til +85°C |
| Dimensions | 105 x58 x90 mm |
The unit operates from 100 V to 240 V AC (shown as 2230 Vac (100..240 Vac) in the specification).
The typical efficiency is about 78 %.
It is self‑cooled by natural convection.
The dimensions are 105 mm × 58 mm × 90 mm.
