This document mainly introduces the safety installation measures of the product, including safety precautions before installation, safety precautions during installation, and safety precautions after installation.

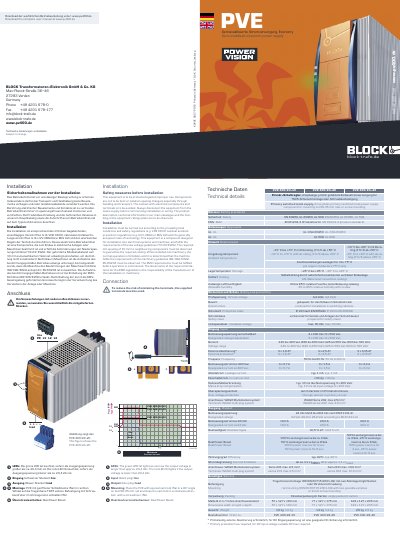

This manual provides safety measures, installation steps, and connection guidelines for Block's PVE 400 series power supply modules (PVE 400/24‑10, /24‑20, /24‑40). It covers required clearances, mounting options, and compliance with low‑voltage and EMC directives.
Technical data such as input voltage range, output voltage, current ratings, efficiency, environmental limits, and approved safety standards are listed, along with wiring diagrams and LED status indications. This manual is written in German.
| Output voltage | 24 Vdc (22.8 – 28.8 Vdc) |
|---|---|
| Output current | 100 A |
| Efficiency | typ. 92 % |
| Protection class | IP20 |
| Operating temperature | -10 °C to +60 °C |
| Storage temperature | -25 °C to +85 °C |
| Relative humidity | 80 %–85 % (no condensation) |
| Safety approvals | EN 60950, UL 60950, UL 508, EN 61204‑8 |
A minimum distance of 10 mm must be kept to ensure proper cooling.
It complies with EN 60950, UL 60950, UL 508, EN 61204‑8 and related EMC directives.
