SDC 60/15-20 is a versatile switching regulator with a single adjustable stabilized output from a DC Source. The efficiency is essentially independent of input voltage. Output current need not be derated with increasing input voltage. The open version guarantees many possibilities for mounting, connecting in parallel, stand-by function, remote ON/OFF, high efficiency.
The BLOCK SDC 60/15-20 is a versatile step‑down DC/DC converter offering a single adjustable stabilized output from a DC source. It features high efficiency, short‑circuit protection, remote ON/OFF control, and the ability to be connected in parallel.

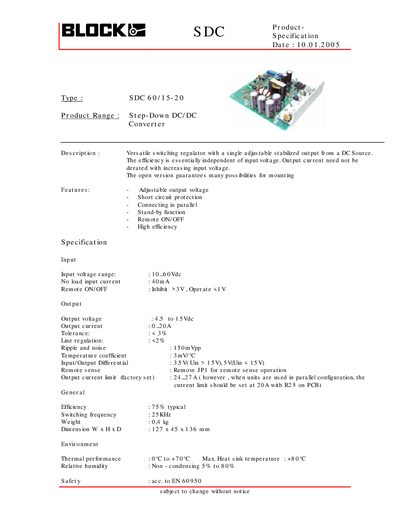

The datasheet provides electrical specifications such as input voltage range, output voltage and current, efficiency, switching frequency, and mechanical details including dimensions, weight, and mounting instructions. Remote sense operation is enabled by removing JP1, and parallel operation is supported via JP2.
| Input voltage range | 10 V – 60 V |
|---|---|
| Output voltage range | 15 V – 45 V |
| Ripple and noise | 150 mVpp |
| Dimensions (W × H × D) | 127 mm × 45 mm × 136 mm |
| Typical efficiency | 175 % |
| Factory output current limit | 24 A – 27 A (set to 20 A for parallel use) |
The converter accepts an input voltage from 10 V to 60 V.
Remote sense is enabled by removing jumper JP1.
The typical efficiency is specified as 175 %.
