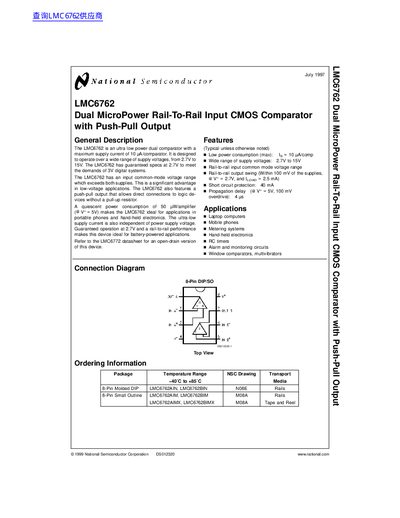

LMC6762 is a dual-channel, low-power, rail-to-rail input, push-pull output comparator from TI. This product is suitable for low-power applications such as computers, mobile phones and measurement instruments.
The LMC6762 is a dual micro‑power comparator designed for low‑voltage applications. It features an input common‑mode range that exceeds both supply rails and a push‑pull output that can drive logic directly without a pull‑up resistor. The device operates from 2.7 V to 15 V and consumes as little as 10 pA per comparator.
Key specifications include a maximum supply current of 10 pA, short‑circuit protection up to 40 mA, and typical propagation delay of 4 µs at 5 V with 100 mV overdrive. The LMC6762 is suited for battery‑powered handheld electronics, mobile phones, meter‑ing systems, and other low‑voltage sensor interfaces.
| Supply voltage range | 2.7 V to 15 V |
|---|---|
| Maximum supply current | 10 pA per comparator |
| Push‑pull output current | 2.5 mA |
| Short‑circuit protection | 40 mA |
| Propagation delay (5 V, 100 mV overdrive) | 4 µs |
| Common‑mode rejection ratio (CMRR) | 75 dB |
| Input bias current | 0.02 pA |
The device draws a maximum of 10 pA per comparator.
It operates from 2.7 V up to 15 V.
The push‑pull output can source up to 2.5 mA.
Yes, it includes short‑circuit protection up to 40 mA.
