TPS1100 Professional Series is a high-end surveying instrument with automated, practical programs and modern functions, which can improve work efficiency, accuracy and flexibility.

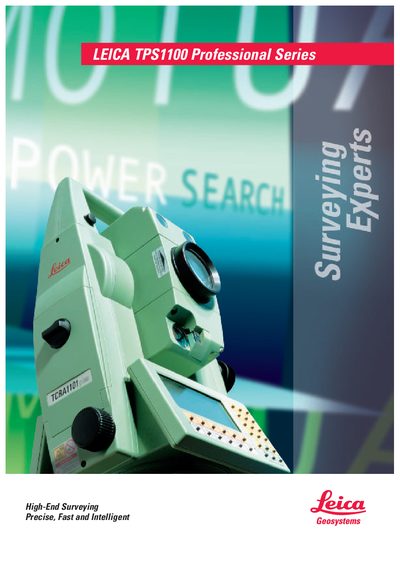

The Leica TPS1100 Professional Series is a high‑precision, fast and intelligent surveying instrument designed for demanding users. It offers automated functions such as Automatic Target Recognition (ATR), PowerSearch, and a modular system that can be customized with various options and accessories.
Key functions include ATR for automatic centering on reflectors, PowerSearch for rapid prism detection, reflectorless distance measurement, and remote operation via the RCS1100 controller. The manual also provides detailed technical data, specifications, and guidance on software integration for efficient data acquisition and processing.
| IR distance measurement range (round prism) | 3000 m |
|---|---|
| Reflectorless distance measurement (standard range) | 80 m |
| Laser class (IR distance meter) | Class 1 |
| Battery voltage | 6 V |
| Instrument weight | 4.7 – 4.9 kg |
ATR automatically centers the telescope on the reflector after a rough aim, eliminating manual fine pointing and focusing, which allows twice as many points to be measured in the same time.
The motorized drive can rotate at a maximum speed of 50 gon per second, which equals 45 degrees per second.
