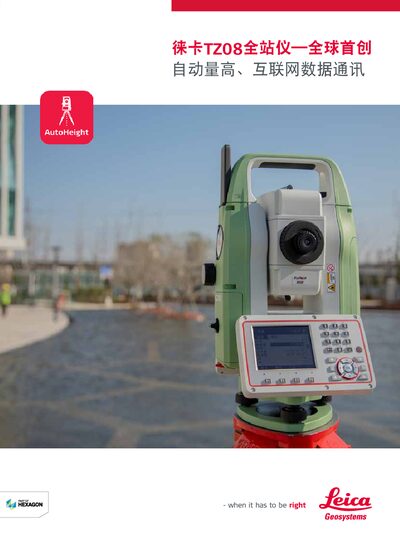

The Leica TZ08 total station offers automatic height measurement, high‑precision angle and distance accuracy, large storage and IP66 protection.
Leica TZ08 is the world’s first total station with automatic height measurement and internet data communication. One‑key operation captures the instrument height, eliminating manual tape work and speeding up field surveys.
The instrument provides 1″ angle accuracy and 1 mm + 1.5 ppm distance accuracy, a 3.5‑inch VGA‑level color touchscreen, IP66 dust‑water protection, and multiple data transfer options such as USB, SD card, Bluetooth and WLAN for seamless data sharing. This manual is written in Chinese.
| Angle measurement accuracy | 1 arc‑second |
|---|---|
| Distance measurement accuracy | 1 mm + 1.5 ppm |
| Storage capacity | 2 GB internal, up to 8 GB SD, 1 GB USB |
| Display | 3.5‑inch, 320×240 px, VGA, color touchscreen |
| Weight | 4.3–4.5 kg |
| Operating temperature range | -20 °C to +50 °C |
| Battery runtime | Rechargeable Li‑ion, up to 30 h |
It obtains the current instrument height automatically with a single key press, removing the need for manual tape measurement.
The device supports USB, MiniUSB, Bluetooth, WLAN, SD card, U‑disk and can share data via email with one‑click transmission.
The instrument provides angle measurement accuracy up to 1 arc‑second.
