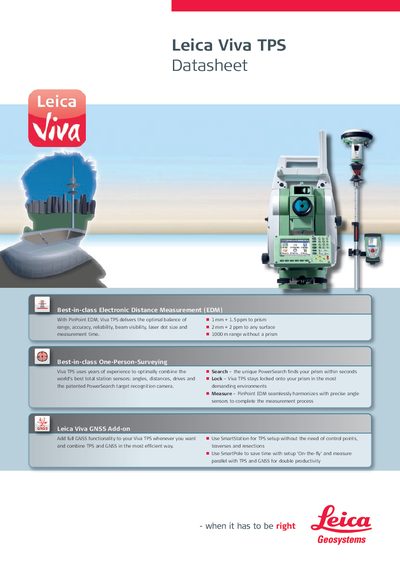

Leica Viva TPS Datasheet, This document is the data manual of Leica Viva TPS
The Leica Viva TPS is a total station that combines high‑performance electronic distance measurement (EDM) with one‑person surveying features. It offers PinPoint EDM, PowerSearch target recognition, and an optional GNSS add‑on for combined surveying solutions.
The datasheet provides detailed technical specifications, including angular and distance measurement accuracy, range options, power management, dimensions, environmental protection, and interface options such as RS232 and optional Bluetooth.
| Range without prism | 1000 m |
|---|---|
| Standard distance accuracy | 1 mm + 1.5 ppm |
| Fast distance accuracy | 3 mm + 1.5 ppm |
| Operating time (battery) | 5 – 8 h |
| Weight (S15 model, without battery) | 1.34 kg |
| Temperature range (operating) | -20 °C to +50 °C |
| Laser class (prism distance meter) | Class 1 |
The instrument can measure up to 1000 m without using a prism.
The standard accuracy is 1 mm + 1.5 ppm.
It provides 5 to 8 hours of operating time on a full charge.
