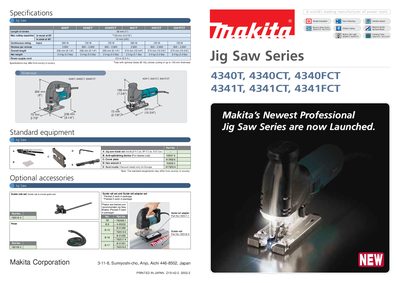

This document introduces Makita's newest professional jig saw series, including models 4340T, 4340CT, 4340FCT, 4341T, 4341CT, and 4341FCT. They feature reliable performance and advanced functionality, making them suitable for various work environments.
This manual details the technical specifications of Makita's 4340 and 4341 series jig saws, including stroke length, cutting capacities, power rating, and dimensions. It also outlines the standard equipment supplied with each unit.
Additional sections cover optional accessories, blade‑change procedures, dust‑proof construction, vibration reduction, and other functional features such as the built‑in LED light and sawdust blower for improved work efficiency.
| Length of stroke | 26 mm (1") |
|---|---|
| Max cutting capacity in wood | 135 mm (5-5/16") |
| Max cutting capacity in steel | 10 mm (3/8") |
| Continuous rating Input | 580 W / 720 W |
| Strokes per minute | 2,800 / 800 |
| Overall length | 236 mm (9-1/4") |
| Net weight | 2.4 kg (5.3 lbs) |
| Power supply cord length | 2.5 m (8.2 ft.) |
The jig saw has a stroke length of 26 mm (1 inch).
The tool‑less blade change uses a push‑in lock system that lets you replace the blade quickly without additional tools.
