This document provides technical specifications and mechanical specifications of the SL12 8R003 resistor produced by Ametherm, Inc. The resistor has a resistance value of 8.0Ω and a maximum steady state current of 3.0A. In addition, the document also explains the ordering method for different lead types and provides information on the material type, maximum recommended capacitance, and physical dimensions of the resistor.

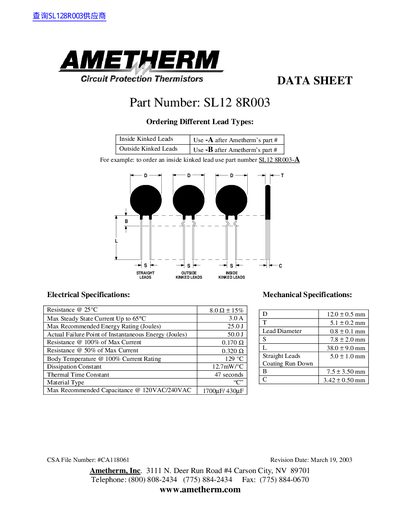

The SL12 8R003 is a circuit protection thermistor offered by Ametherm. The data sheet provides ordering options for different lead types, including inside and outside kinked leads, and specifies the part number format (e.g., SL12 8R003-A for inside kinked leads).
Electrical and mechanical specifications are listed, covering resistance at various temperatures, maximum steady‑state current, energy ratings, body temperature limits, and physical dimensions. Contact information for Ametherm, Inc. is also included.
| Resistance @ 25°C | 800 Ω ± 415 % |
|---|---|
| Max Steady State Current (up to 65°C) | 3.0 A |
| Max Recommended Energy Rating | 25.0 J |
| Actual Failure Point of Instantaneous Energy | 50.0 J |
| Body Temperature @ 100 % Current Rating | 129 °C |
| Dissipation Constant | 12.7 mW/°C |
| Thermal Time Constant | 47 s |
| Material Type | oO Cc |
Add the suffix “-A” to the part number, e.g., SL12 8R003‑A.
The thermistor can carry up to 3.0 A continuously up to 65 °C.
The recommended maximum energy rating is 25.0 J.
The body temperature may reach 129 °C at 100 % current rating.
