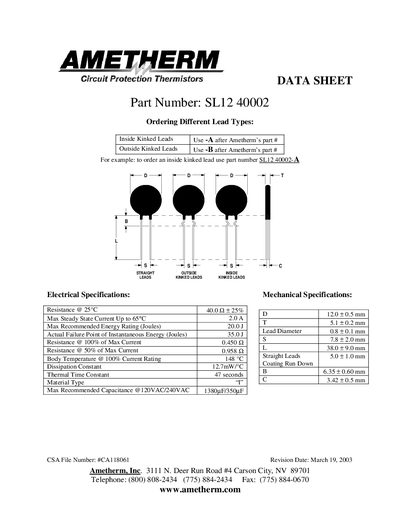

Ametherm SL12 40002 Circuit Protection Thermistor Datasheet
This document is a datasheet for the Ametherm SL12 40002 Circuit Protection Thermistor. It provides specific ordering information regarding lead types (inside kinked vs. outside kinked) by adding suffixes -A or -B to the part number.
The sheet lists comprehensive electrical specifications, including resistance at various temperatures and currents, maximum steady state current, energy ratings for failure points, and dissipation constants. Mechanical specifications cover dimensions such as lead diameter, body length, and coating run-down details.
AMETHERM SL12 specifications
| Part Number | SL12 40002 |
|---|---|
| Resistance @ 25°C | 40.0 Ω ±25% |
| Max Steady State Current | Up to 65°C 2.0A |
| Max Recommended Energy Rating | 20.0 J |
| Actual Failure Point of Instantaneous Energy | 35.0 J |
| Resistance @ 100% of Max Current | 0.450 Ω |
| Dissipation Constant | 12.7mW/°C |
| Thermal Time Constant | 47 seconds |
| Lead Diameter | 0.8 + 0.1 mm |
Source: Ametherm SL12 40002 Circuit Protection Thermistor Datasheet
