This document provides the resistance temperature curve, electrical specifications, and mechanical specifications of the SL03 50101 model from Ametherm, Inc.

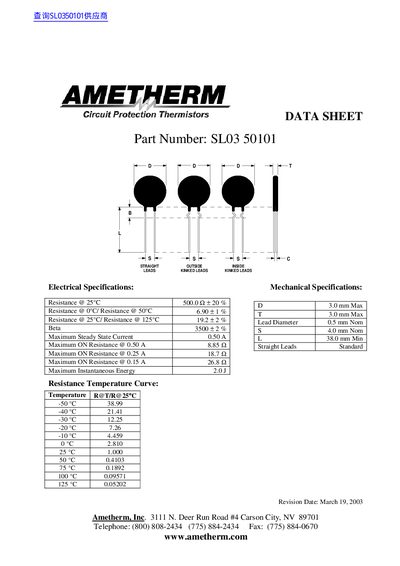

This document is a datasheet for the Ametherm SL03 50101 Circuit Protection Thermistor. It provides specific electrical characteristics such as resistance at various temperatures (25°C, 0°C, 50°C, 125°C), beta value, and maximum steady state current.
The document also lists mechanical specifications including lead dimensions and diameter, along with a temperature-resistance curve table showing the ratio of resistance at different temperatures relative to the resistance at 25°C.
| Beta Value | 3500 ± 2% |
|---|---|
| Maximum Steady State Current | 0.50 A |
| Lead Diameter | 0.5 mm Nominal |
The resistance is 500.0 ohms with a tolerance of plus or minus 2 percent.
The maximum steady state current rating is 0.50 A.
