This is a datasheet for the SL155R008-03 fuse produced by Ametherm. The fuse has an 8.0A rating and a 50.0J rating.

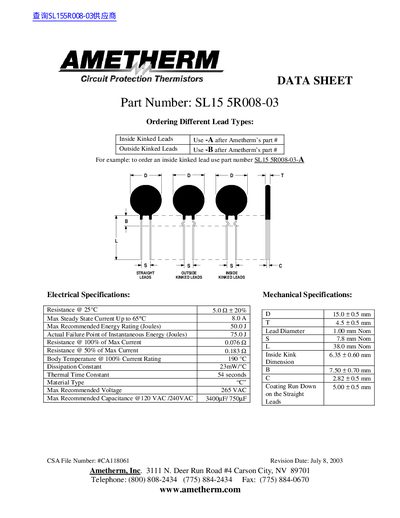

This document is a data sheet for the Ametherm SL15 5ROO8-03 circuit protection thermistor. It provides specific electrical and mechanical specifications for the component, including resistance values at various temperatures and current ratings.
The document also details ordering options for different lead types, such as inside or outside kinked leads, and lists the manufacturer's contact information and CSA file number.
| Resistance @ 25°C | 5.02 + 420% |
|---|---|
| Max Steady State Current | Up to 65°C 8.0A |
| Max Recommended Energy Rating | 50.0 J |
| Actual Failure Point of Instantaneous Energy | 75.0 J |
| Resistance @ 100% of Max Current | 0.076 |
| Resistance @ 50% of Max Current | 0.183 |
| Body Temperature @ 100% Current Rating | 190 °C |
| Dissipation Constant | 23mW/°C |
| Thermal Time Constant | 54 seconds |
| Max Recommended Voltage | 265 VAC |
| Max Recommended Capacitance @ 120 VAC / 240VAC | 3400uF / 750uF |
The maximum recommended voltage is 265 VAC.
The maximum steady state current is up to 8.0A.
The thermal time constant is 54 seconds.
