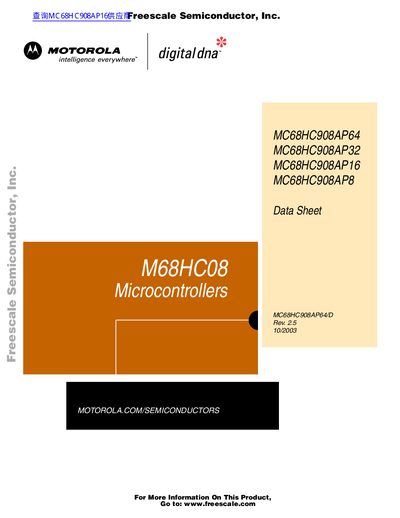

Motorola MC68HC908AP64/MC68HC908AP32/MC68HC908AP16/MC68HC908AP8 Datasheet

About this manual

The MC68HC908AP family includes the AP64, AP32, AP16 and AP8 devices. This datasheet provides a detailed description of the microcontroller architecture, pin assignments, power supply options, and the integrated peripherals such as timers, serial interfaces, ADC and flash memory. It also lists the electrical and mechanical specifications required for system designers.

Revision 2.5 (dated 10/2003) is the current version. For the latest information, users are directed to Motorola/Freescale's website (www.freescale.com). The document includes a comprehensive table of contents covering general description, memory map, CPU, oscillator, clock generator, and all peripheral modules.

What's inside

• General Description
• Memory Map
• Random‑Access Memory (RAM)
• FLASH Memory
• Configuration & Mask Option Registers
• Central Processor Unit (CPU)
• Oscillator (OSC)
• Clock Generator Module (CGM)
• Serial Communications Interface Module (SCI)
• Analog‑to‑Digital Converter (ADC)

Frequently asked questions

What is the revision number and date of this datasheet?

The datasheet is Revision 2.5 and was released in October 2003.

Where can I find the most up‑to‑date information for the MC68HC908AP family?

Visit the Motorola/Freescale website at www.freescale.com for the latest documents.
