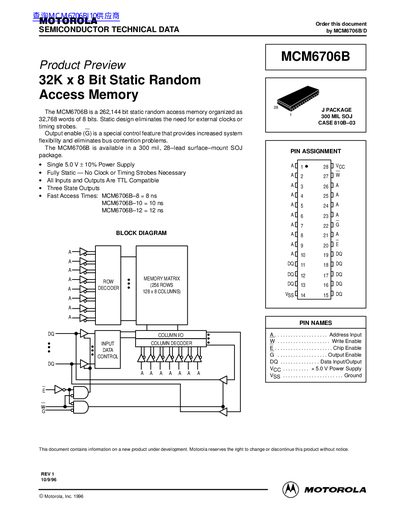

The MCM6706B is a 32K x 8 bit static random access memory from Motorola. It is a fully static memory that does not require external clocks or timing strobes. It has three-state outputs and can be selected to have access times of 8ns, 10ns, or 12ns.
The document describes the MCM6706B, a 262,144-bit static random access memory organized as 32,768 words of 8 bits. It is designed to operate with a single +5V power supply and eliminates the need for external clocks or timing strobes due to its fully static design.
The device features TTL-compatible inputs and outputs with three-state capabilities to prevent bus contention. Available in an 8-ns, 10-ns, and 12-ns access time variant (MCM6706B-8/10/12), it is packaged in a 300 mil, 28-lead surface-mount SOJ package.
| Memory Organization | 32K x 8 Bit Static Random Access Memory |
|---|---|
| Power Supply Voltage | Single +5.0 V (+/-10%) |
| Operating Temperature Range | 0 to +70 °C |
| Storage Temperature Range | -55 to +125 °C |
| Package Type | 300 mil, 28-lead SOJ |
No, its static design eliminates the need for external clocks or timing strobes.
The absolute maximum rating allows a supply voltage between -0.5V and +7.0V.
Yes, all inputs and outputs are specified as TTL compatible.
