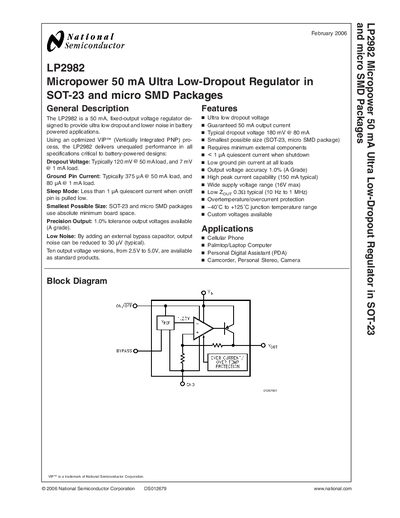

The LP2982 is a 50mA ultra-low dropout regulator from TI company, using SOT-23 and micro SMD packages, the working voltage range is 2.5V-5.0V, the typical dropout voltage is 120mV@50mA load, 7mV@1mA load, the minimum working voltage is 2.3V, the minimum static current is 1µA, supports 1.0% precision output voltage, and the typical output noise is 30µV, it can meet the needs of various battery-powered applications.
The LP2982 is a fixed‑output voltage regulator designed for battery‑powered applications. It provides ultra‑low dropout voltage, low ground‑pin current, and minimal quiescent current in shutdown mode, making it suitable for space‑constrained designs.
Key features include a typical dropout of 180 mV at 80 mA, output‑voltage accuracy of 1.0 % (A‑grade), high peak current capability of 150 mA, and operation over a 2.1 V to 16 V supply range. The device is offered in 5‑lead SOT‑23 (M5) and micro‑SMD 5‑bump (BPA05) packages.
| Output voltage accuracy | 1.0% (A Grade) |
|---|---|
| Typical dropout voltage | 180 mV @ 80 mA |
| Ground pin current (50 mA load) | 375 pA |
| Operating input voltage range | 2.1 V to 16 V |
| Maximum output current | 150 mA (typical) |
| Junction temperature range | -40 °C to +125 °C |
The typical dropout voltage is 180 mV at an 80 mA load.
The regulator operates from 2.1 V up to 16 V.
