NATIONAL SEMICONDUCTOR ADC11DL066 Dual 11-Bit 66 MSPS 450 MHz Input Bandwidth A/D Converter w/Internal Reference Manual

The ADC11DL066 is a dual, low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 11-bit digital words at 66 Megasamples per second (MSPS), minimum. This converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance and a 450 MHz Full Power Bandwidth. Operating on a single 3.3V power supply, the ADC11DL066 achieves 10.3 effective bits and consumes just 686 mW at 66 MSPS, including the reference current. The Power Down feature reduces power consumption to 75 mW. The differential inputs provide a full scale differential input swing equal to 2 times VREF with the possibility of a single-ended input. Full use of the differential input is recommended for optimum performance. The digital outputs from the two ADCs are available on separate 11-bit buses with an output data format choice of offset binary or two’s complement. To ease interfacing to lower voltage systems, the digital output driver power pins of the ADC11DL066 can be connected to a separate supply voltage in the range of 2.4V to the digital supply voltage. This device is available in the 64-lead TQFP package and will operate over the industrial temperature range of −40˚C to +85˚C. An evaluation board is available.

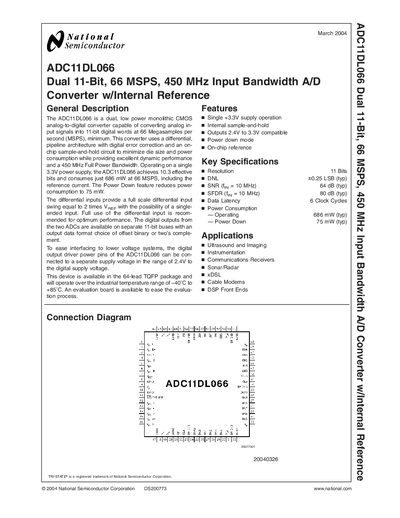

NATIONAL SEMICONDUCTOR ADC11DL066 Dual 11-Bit 66 MSPS 450 MHz Input Bandwidth A/D Converter w/Internal Reference Manual - cover page
Brand
National Semiconductor
Category
Other Electronics
Document type
User Manual
Language
English
Pages
23
File format
PDF
File size
622 KB
Published
09 May, 2012
Updated
28 September, 2023
MD5 checksum
3E07A5046E98D99D45F0F0DB6B014059

About this manual

The ADC11DL066 is a dual, low‑power monolithic CMOS analog‑to‑digital converter that delivers 11‑bit resolution at a minimum of 66 MSPS with a 450 MHz full‑power bandwidth. It operates from a single +3.3 V supply, offers an on‑chip sample‑and‑hold circuit, and includes a power‑down mode to reduce consumption.

This manual details the device’s features, key specifications, pin‑out and equivalent circuits, absolute maximum and operating ratings, DC/AC electrical characteristics, recommended layout practices, and application information such as typical usage in ultrasound, imaging, communications, and DSP front‑ends.

What's inside

  • General Description
  • Features
  • Key Specifications
  • Pin Descriptions and Equivalent Circuits
  • Absolute Maximum Ratings
  • Converter Electrical Characteristics
  • DC and Logic Electrical Characteristics
  • AC Electrical Characteristics
  • Applications Information
  • Common Application Pitfalls

Specifications

Resolution11 Bits (typ)
Differential Non‑Linearity (DNL)+0.25 LSB (typ)
Signal‑to‑Noise Ratio (SNR) at 10 MHz64 dB (typ)
Operating Power Consumption686 mW (typ)
Power‑Down Power Consumption75 mW (typ)
Full‑Power Bandwidth450 MHz
Sample Rate66 MSPS (minimum)
Supply Voltage+3.3 V single supply
Operating Temperature Range-40 °C to +85 °C

Frequently asked questions

What supply voltage does the ADC11DL066 require?

It operates from a single +3.3 V power supply.

How much power does the device consume in normal operation?

Typical operating power consumption is 686 mW.

What is the full‑power input bandwidth of the ADC11DL066?

The converter provides a full‑power bandwidth of 450 MHz.

What temperature range can the ADC11DL066 operate in?

It is rated for -40 °C to +85 °C operation.
