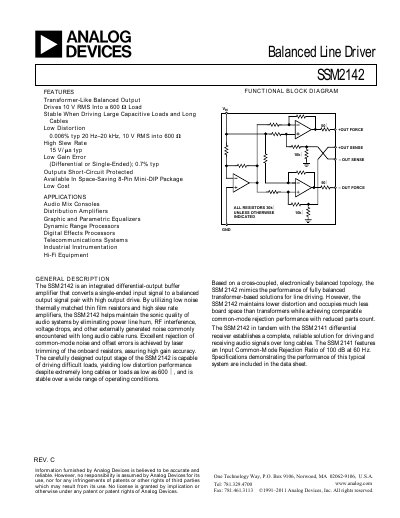

This datasheet mainly introduces the function characteristics and application scenarios of SSM2142.
The SSM2142 is an integrated differential‑output buffer amplifier that converts a single‑ended input to a balanced output pair. It provides transformer‑like balanced output, drives 10 V RMS into a 600 Ω load, and maintains low distortion (0.006 % THD+N) across 20 Hz‑20 kHz.
Designed for audio mixers, distribution amplifiers and other hi‑fi equipment, the device features a high slew rate (15 V/µs), short‑circuit protection, and on‑chip laser‑trimmed resistors for excellent common‑mode rejection. It is supplied in an 8‑lead PDIP or 16‑lead SOIC package and operates from ±13 V to ±18 V supply voltages.
| Input Impedance | 10 kΩ |
|---|---|
| Input Current | ±750‑900 µA |
| Differential Gain | 5.8 dB typ |
| Slew Rate | 15 V/µs |
| Output Short‑Circuit Current | 60‑70 mA |
| Supply Voltage Range | ±13 V to ±18 V |
The device has a typical slew rate of 15 V/µs.
It can drive a 10 V RMS signal into a 600 Ω load while maintaining low distortion.
