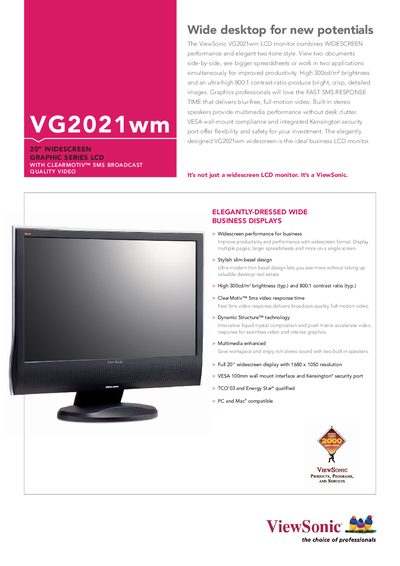

The ViewSonic VG2021wm is a 20-inch widescreen graphic series LCD monitor with features such as high brightness, high contrast ratio, and fast response time. It is suitable for business applications, allowing users to display multiple pages and larger spreadsheets simultaneously for improved productivity.
The VG2021wm is a 20.1‑inch widescreen LCD monitor with a 1680 × 1050 WSXGA+ resolution, 5 ms ClearMotiv™ video response time, 300 cd/m² brightness and an 800:1 contrast ratio. It offers built‑in stereo speakers, VESA‑mount compatibility, a Kensington security port, and a slim‑bezel design for improved productivity.
The manual covers hardware specifications, connector types (15‑pin mini D‑Sub VGA, 3.5 mm audio line‑in, AC power), on‑screen display controls, ergonomics (tilt adjustment), power consumption, regulatory certifications, and warranty information. It also includes quick‑start steps and detailed OSD menu functions.
| Screen size | 20.1" (51.1 cm) diagonal |
|---|---|
| Resolution | 1680 × 1050 @ 60 Hz |
| Contrast ratio | 800:1 (typ.) |
| Response time | 5 ms (ClearMotiv™) |
| Brightness | 300 cd/m² (typ.) |
| Viewing angles | 160° H / 160° V (10:1), 170° H / 170° V (5:1) |
| Color support | 16.7 M colours (6‑bit + Hi‑FRC) |
| Power consumption | 43 W typical, <1 W in power‑save mode |
| Dimensions (with stand) | 493 × 455 × 205 mm |
| Weight (with stand) | 6.8 kg |
The monitor has a 5 ms ClearMotiv™ video response time.
It includes a 15‑pin mini D‑Sub VGA connector, a 3.5 mm stereo audio line‑in, and a 3‑pin AC power plug.
Yes, it supports a 100 mm × 100 mm VESA mounting interface.
Typical power consumption is 43 W, dropping to less than 1 W in power‑save mode.
