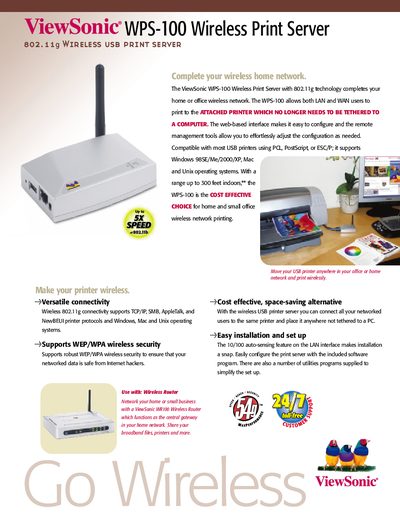

The ViewSonic WPS-100 Wireless Print Server with 802.11g technology allows you to wirelessly connect your USB printer to your office or home network. It supports most USB printers using PCL, PostScript, or ESC/P protocols and is compatible with Windows, Mac, and Unix operating systems.
The manual explains how to install and configure the ViewSonic WPS-100 wireless print server, which enables USB printers to be shared over a 802.11b/g network. It covers the web‑based setup interface, security options (WEP/WPA), and compatibility with Windows, Mac and Unix operating systems.
Technical specifications are listed, including WLAN standards, port types, antenna, output power, coverage range, certifications, physical dimensions, and supported printer models. Contact information and packaging contents are also provided.
| WLAN Standards | IEEE 802.11g: 54‑6 Mbps; IEEE 802.11b: 11‑1 Mbps |
|---|---|
| LAN Port | 10/100 Base‑T/Tx auto‑sensing |
| USB Port | USB 2.0 printer port |
| Output Power | Max. 100 mW (after antenna) |
| Coverage Area | Up to 100 m indoors, up to 300 m outdoors |
| Wireless Security | 64/128‑bit WEP, WPA (XP SP1, 2000 SP4 only) |
| Physical Dimensions (product) | 95.5 mm × 63.8 mm × 25.5 mm |
| Weight (net) | 0.19 lb (0.09 kg) |
| Certifications | FCC, IC, CE |
| Supported Operating Systems | Windows 98SE/Me/2000/XP, Mac, Unix |
| Supported Printers | Most USB printers (Epson, HP, OKI Data, Lexmark) using PCL, PostScript or ESC/P |
The device can reach up to 100 meters indoors and up to 300 meters outdoors.
It is compatible with most USB printers from Epson, HP, OKI Data, and Lexmark that use PCL, PostScript, or ESC/P languages.
