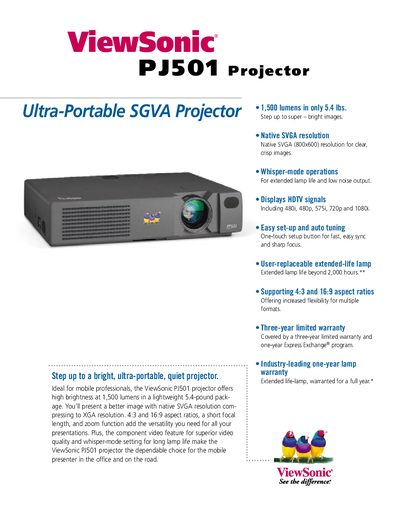

ViewSonic PJ501 is a portable projector with 1,500 lumens brightness and SVGA (800x600) resolution, supporting 4:3 and 16:9 aspect ratios.
The ViewSonic PJ501 is a lightweight, ultra‑portable projector offering 1,500 lumens brightness, native SVGA resolution (800×600) and support for 4:3 and 16:9 aspect ratios. It includes features such as whisper‑mode for low noise, a user‑replaceable lamp with over 2,000‑hour life, and a range of video input formats.
The manual details the projector's specifications, installation options, user controls, remote functions, operating conditions, and warranty information. Optional accessories like a hard carrying case, spare lamp, and ceiling‑wall mount kit are also listed.
| Brightness | 1,500 Lumens |
|---|---|
| Contrast Ratio | 400:1 |
| Lamp | 150W UHB, 2,000‑hour rating |
| Resolution | SVGA 800×600 (compressed to 1024×768) |
| Aspect Ratio | 4:3, 16:9 |
| Throw Distance | 0.76 m – 5.92 m |
| Dimensions | 277 mm × 211 mm × 61 mm (10.9" × 8.3" × 2.4") |
| Power Consumption | 210 W (typ), 130 W (eco‑mode) |
The lamp has an extended life of beyond 2,000 hours.
Supported formats include RGB analog, NTSC, PAL, SECAM, 480i, 480p, 575i, 720p, and 1080i.
It includes a three‑year limited warranty on parts and labor and a one‑year warranty on the lamp.
