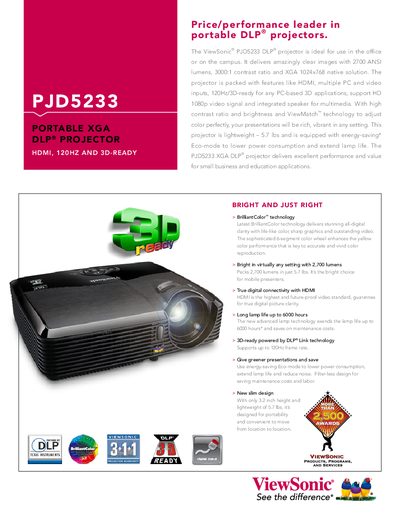

The ViewSonic® PJD5233 DLP® projector is an ideal choice for use in the office or on campus. It delivers amazingly clear images with 2700 ANSI lumens, 3000:1 contrast ratio and XGA 1024x768 native resolution. The projector is packed with features like HDMI, multiple PC and video inputs, 120Hz/3D-ready for any PC-based 3D applications, support for HD 1080p video signal, and an integrated speaker for multimedia. With high contrast ratio and brightness and ViewMatch™ technology to adjust color perfectly, your presentations will be rich and vibrant in any setting. This lightweight projector weighs only 5.7 lbs and is equipped with energy-saving Eco-mode to lower power consumption and extend lamp life. The PJD5233 XGA DLP® projector offers excellent performance and value for small business and education applications. It is a price/performance leader in portable DLP® projectors. PJD5233 PORTABLE XGA DLP® PROJECTOR HDMI, 120HZ AND 3D-READY BRIGHT AND JUST RIGHT > BrilliantColor™ technology The latest BrilliantColor technology delivers stunning all-digital clarity with lifelike color, sharp graphics, and outstanding video. The sophisticated 6-segment color wheel enhances yellow color performance, which is key to accurate and vivid color reproduction. > Bright in virtually any setting with 2,700 lumens Packs 2,700 lumens in just 5.7 lbs. It’s the bright choice for mobile presenters. > True digital connectivity with HDMI HDMI is the highest and future-proof video standard, guaranteeing true digital picture clarity.
The ViewSonic PJD5233 is a lightweight portable XGA DLP projector designed for office and education use. It offers 2,700 lumens brightness, up to 3,000:1 dynamic contrast, and 3D‑ready HDMI connectivity.
This manual covers the projector’s technical specifications, optional accessories, installation and connection options, on‑screen menu functions, operating temperature limits, and warranty information, helping users set up and maintain the device efficiently.
| Resolution | XGA 1024x768 (Native) |
|---|---|
| Brightness | 2,700 Lumens |
| Contrast Ratio | 2000:1 (typ) / 3000:1 (dynamic) |
| Lamp Life (Eco‑mode) | 6,000 hours |
| Throw Ratio | 1.97‑2.17:1 |
| Power Consumption (typical) | 235 W |
| Weight (net) | 5.7 lb (2.6 kg) |
| Dimensions (W×H×D) | 11.2 × 3.2 × 9.2 in |
| Digital Input | HDMI 1.3 |
| Lens | 1.1× manual optical zoom/focus |
The lamp can operate up to 6,000 hours in Eco‑mode.
It provides 2,700 lumens of brightness.
The projector operates between 32 °F and 104 °F (0 °C‑40 °C).
It includes HDMI 1.3, RGB, component, composite, S‑video, and USB inputs.
