This is a high performance, low start-up current, low voltage lockout, programmable current mode PWM controller with automatic feed forward compensation, latching PWM, over current limiting, high current output, double pulse suppression and other functions.

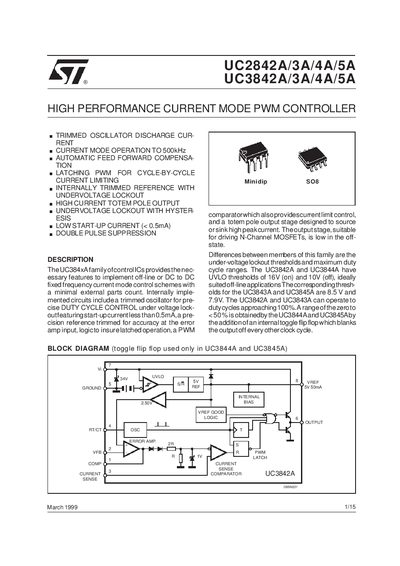

The UC284xA family of control ICs provides high‑performance current‑mode PWM control with features such as a trimmed oscillator, automatic feed‑forward compensation, latch‑type PWM for cycle‑by‑cycle current limiting, and an internally trimmed reference with under‑voltage lockout. The devices operate up to 500 kHz and include a high‑current totem‑pole output suitable for driving N‑channel MOSFETs.
The datasheet lists absolute maximum ratings, pin assignments, thermal data, and detailed electrical characteristics for both the UC2842A/3A/4A/5A and UC3842A/3A/4A/5A variants, including supply voltage limits, oscillator frequency ranges, output current capabilities, and under‑voltage lockout thresholds.
| Supply Voltage (low‑impedance source) | 30 V |
|---|---|
| Operating Temperature Range | -65 °C to 150 °C |
| Power Dissipation (Minidip package) | 1.25 W |
| Output Low Level Sink Current | 20 mA |
| Under‑Voltage Lockout Threshold (UC3842A) | 16 V (on) / 10 V (off) |
The maximum supply voltage is 30 V.
The UVLO thresholds are 16 V when on and 10 V when off.
They are rated for storage temperatures from –65 °C to 150 °C.
