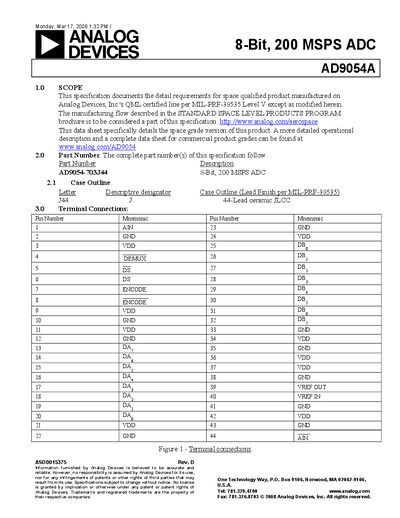

This document specifies the detailed requirements for space qualified products manufactured on Analog Devices, Inc.'s QML certified line. The document provides specifications and characteristics of the product, as well as information on the manufacturing flow and relevant website links.
The AD9054A is an 8‑bit analog‑to‑digital converter capable of sampling at up to 200 MSPS. It is manufactured on Analog Devices' QML certified line for space applications and complies with MIL‑PRF‑38535 Level V requirements.
Key features include a 44‑lead JLCC ceramic package, a supply current of 156 mA, an operating temperature range of –55 °C to +125 °C, and detailed electrical and thermal characteristics provided for design integration.
| Resolution | 8‑bit |
|---|---|
| Junction‑to‑Case Thermal Resistance | 10 °C/W |
The AD9054A is supplied in a 44‑lead JLCC ceramic package.
