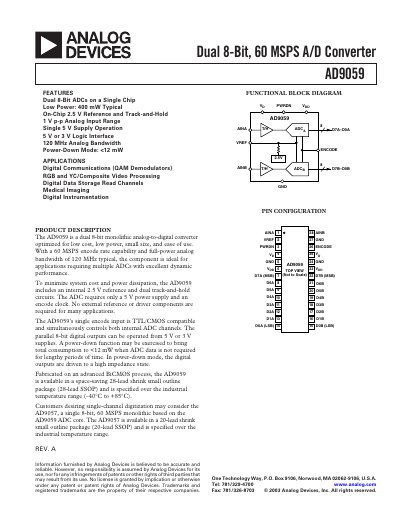

The AD9059 combines two 8‑bit analog‑to‑digital converters in a single low‑cost monolithic device. It operates from a single 5 V supply, offers an internal 2.5 V reference, and provides a maximum conversion rate of 60 MSPS with a typical power dissipation of 400 mW.
The device is supplied in a 28‑lead shrink small‑outline package and is specified for industrial temperature ranges (‑40 °C to +85 °C). Detailed pin configurations, electrical characteristics, and application examples such as video digitizers and I/Q receivers are included.
| Resolution | 8 Bits |
|---|---|
| Maximum Conversion Rate | 60 MSPS |
| Power‑Down Dissipation | <12 mW |
| VD Supply Current (5 V) | 72‑92 mA |
| Package | 28‑lead SSOP |
The AD9059 can sample at up to 60 MSPS.
It is offered in a 28‑lead shrink small‑outline package (SSOP).
