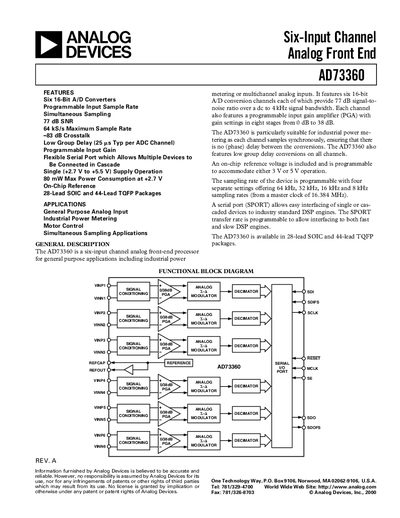

The document describes the features and characteristics of the AD73360 product, including six 16-bit A/D converters, programmable input sample rate, simultaneous sampling, 77dB SNR, maximum 64kS/s sample rate, etc.
The AD73360 is a six‑input channel analog front‑end processor that provides six 16‑bit A/D converters, 77 dB SNR and a maximum sample rate of 64 kS/s. It is aimed at general‑purpose analog input applications such as industrial power metering, motor control and simultaneous‑sampling systems.
The device features a programmable input gain amplifier (0 dB to 38 dB), a flexible serial port (SPORT) for cascading multiple devices, and operates from a single 2.7 V to 5.5 V supply. It is offered in 28‑lead SOIC and 44‑lead TQFP packages and includes an on‑chip reference voltage.
| Number of ADC channels | 6 |
|---|---|
| Signal‑to‑Noise Ratio | 77 dB |
| Maximum Sample Rate | 64 kS/s |
| Supply Voltage (single supply) | 2.7 V to 5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Input Range (5 V version) | 3.2875 V p‑p |
| Group Delay (64 kHz output) | 25 µs |
| Power Supply Rejection | 55 dB |
| Input Resistance | 25 kΩ |
The AD73360 can sample up to 64 kS/s.
It offers a signal‑to‑noise ratio of 77 dB.
It operates from a single supply of 2.7 V to 5.5 V.
The device is rated for -40 °C to +85 °C.
