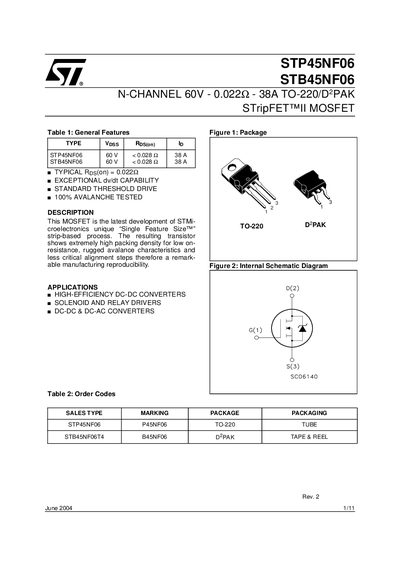

STMicroelectronics STP45NF06 / STB45NF06 Datasheet

This document is the specification for STP45NF06 and STB45NF06

Brand: STMicroelectronics
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 322 KB
Published: 09 May, 2012
Updated: 30 September, 2023
MD5 checksum: F90EA81506B57836DFB975C2960E369D
PDF: STMicroelectronics STP45NF06 / STB45NF06 Datasheet PDF

About this manual

The STP45NF06 and STB45NF06 are N‑channel MOSFETs fabricated with STMicroelectronics' Single Feature Size™ strip‑based process, offering low on‑resistance, high avalanche capability and robust manufacturing reproducibility. They are supplied in TO‑220/DPAK packages, with options for tape & reel or tube shipping.

Typical applications include high‑efficiency DC‑DC converters, solenoid and relay drivers, and other power conversion circuits. The document lists absolute maximum ratings, thermal data, avalanche characteristics, and detailed electrical parameters for design reference.

What's inside

General Features
Order Codes
Absolute Maximum Ratings
Thermal Data
Avalanche Characteristics
Electrical Characteristics
On Characteristics
Off Characteristics
Dynamic Characteristics
Mechanical Data

Specifications

Maximum Drain‑Source Voltage (Vds)	60 V
Continuous Drain Current (Id) @ 25 °C	38 A
Maximum Power Dissipation	80 W
Maximum Junction Temperature (Tj)	175 °C
Avalanche Current (Ia)	38 A

Frequently asked questions

What is the maximum drain‑source voltage rating for the STP45NF06 MOSFET?

The maximum drain‑source voltage is 60 V.
