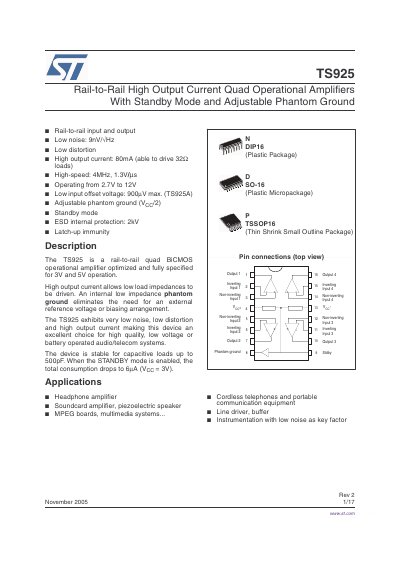

The TS925 is a rail-to-rail high output current quad operational amplifier with standby mode and adjustable phantom ground (VCC/2). It features rail-to-rail input and output, low noise, low distortion, high output current, and high speed. It is suitable for high quality, low voltage or battery operated audio/telecom systems.
The TS925 quad operational amplifier is optimized for 3 V‑5 V operation and offers rail‑to‑rail input and output, low noise (9 nV/√Hz), low distortion, and up to 80 mA output current. It includes an internal phantom ground and a standby mode that reduces consumption to 6 µA.
The device is supplied in DIP‑16, SO‑16, and TSSOP‑16 packages, meets a -40 °C to +125 °C temperature range, and provides specifications such as a 4 MHz gain‑bandwidth product, 0.9 mV input offset voltage, and 60‑80 dB common‑mode rejection.
| Supply voltage range | 2.7 V to 12 V |
|---|---|
| High output current | 80 mA |
| Low noise | 9 nV/√Hz |
| Gain‑bandwidth product | 4 MHz |
| Standby mode current | 6 µA |
| Operating temperature range | -40 °C to +125 °C |
The standby mode current is 6 µA when Pin 9 is grounded.
The TS925 can source up to 80 mA of output current.
It operates from –40 °C to +125 °C.
