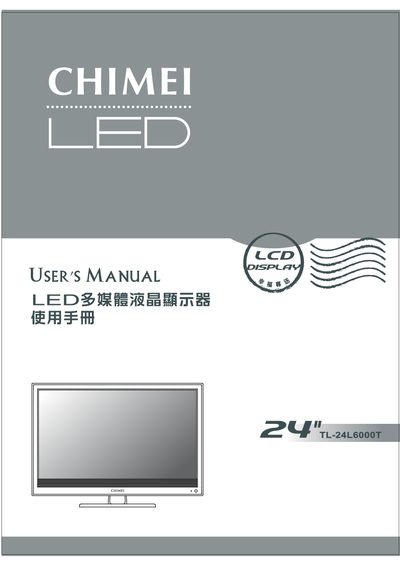

This document is the user manual of a certain brand of LCD display, mainly introducing the use method and precautions of the display
This manual covers important safety warnings, proper installation, and usage of the Chimei TL-24L6000T multimedia LCD display. It explains how to mount the unit on a table or wall, connect the power cord safely, and maintain the device to avoid electric shock or fire hazards.
The guide also describes the remote control, connector functions (HDMI, VGA, AV, etc.), picture and audio settings, troubleshooting tips, and full technical specifications such as screen size, resolution, power consumption, and operating temperature ranges.
| Active Area / Screen Size | 521.28 mm × 293.22 mm (23.6" diagonal) |
|---|---|
| Aspect Ratio | 16:9 widescreen |
| Maximum Resolution | 1920 × 1080 pixels |
| Input Voltage | 12 V DC |
| Operating Temperature | 5 ~ 35 °C (41 ~ 95 °F), 10 % ~ 90 % RH (no condensation) |
| Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F), 10 % ~ 90 % RH (no condensation) |
| Built‑in Speaker Power | 8 Ω, SW (max.) × 2 |
