The LTC2053 is a high precision instrumentation amplifier with adjustable gain, low offset voltage, and small temperature drift. It is suitable for applications such as thermocouple amplifiers, electronic scales, and medical instrumentation.
The LTC2053 and LTC2053‑SYNC are high‑precision, rail‑to‑rail, zero‑drift instrumentation amplifiers with resistor‑programmable gain. They offer 116 dB CMRR independent of gain, low offset voltage (<10 µV) and low drift (<50 nV/°C), making them suitable for thermocouple amplifiers, medical instrumentation, strain‑gauge amplifiers, and high‑resolution data acquisition.

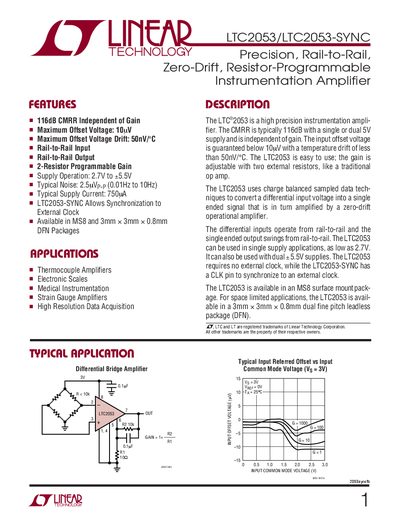

The document lists electrical characteristics, absolute maximum ratings, and package options (MS8 and 3 mm × 3 mm × 0.8 mm DFN). Typical performance graphs, noise density, supply current, and gain error data are included, along with a typical linearized platinum RTD application and related part numbers.
| Supply Voltage Range | 2.7 V to +5.5 V |
|---|---|
| Typical Noise | 2.5 µV p‑p (0.01 Hz to 10 Hz) |
| Typical Supply Current | 750 µA |
| CMRR | 116 dB |
| Gain Error | 0.001 % to 0.01 % |
| Gain Nonlinearity | 3 ppm (typ) |
The device operates from 2.7 V up to +5.5 V.
It is offered in an MS8 surface‑mount package and a 3 mm × 3 mm × 0.8 mm DFN package.
Typical supply current is about 750 µA.
