The LTM4600 is a high-efficiency DC/DC µModule with a 10A output current and an output voltage range of 0.6V to 5V. It features a high-efficiency design that does not require heat sinks or airflow to meet power specifications, and it has a fast transient response and fault protection features.
The LTM4600 is a 10 A, non‑isolated synchronous step‑down DC/DC power module designed for point‑of‑load regulation. It operates from a wide input range of 4.5 V to 20 V and delivers an adjustable output voltage from 0.6 V to 5 V, with up to 92 % efficiency and 1.5 % regulation accuracy. The module integrates the switching controller, power FETs, inductor and all required support components in a compact 15 mm × 15 mm × 2.8 mm LGA package.

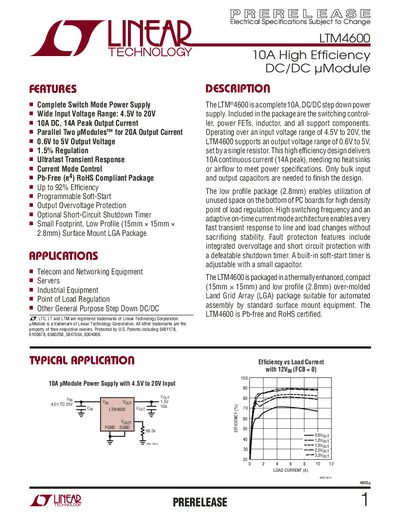

Typical applications include telecom, networking, servers and industrial equipment. The datasheet details electrical characteristics, absolute maximum ratings, pin assignments, decoupling requirements, protection features and a simplified block diagram to aid designers in implementing the LTM4600 in their systems.
| Input Voltage Range | 4.5 V to 20 V |
|---|---|
| Output Voltage Range | 0.6 V to 5 V |
| Continuous Output Current | 10 A |
| Peak Output Current | 14 A |
| Efficiency (typical) | up to 92 % |
| Regulation Accuracy | 1.5 % |
| Package Size | 15 mm × 15 mm × 2.8 mm |
| Typical Switching Frequency | 800 kHz at full load |
The LTM4600 operates from 4.5 V up to 20 V input.
It can deliver up to 10 A continuous output current (14 A peak).
The module includes integrated over‑voltage, under‑voltage, short‑circuit protection and a defeatable shutdown timer.
