The LT6106 is a versatile high side current sense amplifier with features such as low cost, high accuracy, and wide input voltage range. It is suitable for automotive, industrial, and power management applications.
The LT6106 is a high‑side current‑sense amplifier with gain selectable by two external resistors. It offers low offset voltage (150 µV typical, 250 µV max), low input bias current (40 nA max), and a low supply current of 65 µA typical at 12 V. The device operates from 2.7 V to 36 V (44 V absolute max) and supports temperatures from –40 °C to 125 °C.

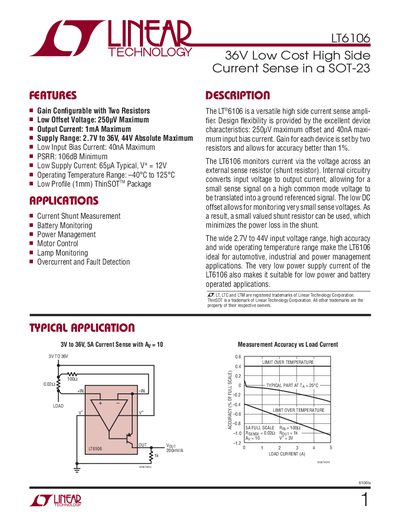

Typical applications include current shunt measurement, battery monitoring, power management, motor control, lamp monitoring, and over‑current fault detection. The datasheet includes detailed electrical characteristics, typical performance graphs, application guidelines, and package information for the 5‑lead TSOT‑23 (ThinSOT) package.
| Supply Voltage Range | 2.7 V to 36 V (44 V absolute max) |
|---|---|
| Input Offset Voltage | 150 µV typical, 250 µV max |
| Input Bias Current | 40 nA max |
| Output Current | 1 mA max |
| Supply Current | 65 µA typical at V+ = 12 V |
| Operating Temperature Range | -40 °C to 125 °C |
| Gain Configuration | Configurable with two external resistors |
The device can be powered up to 44 V absolute maximum, with a typical range up to 36 V.
The LT6106 can source up to 1 mA of output current.
The input offset voltage is typically 150 µV and up to 250 µV maximum.
The LT6106 operates from –40 °C to 125 °C.
