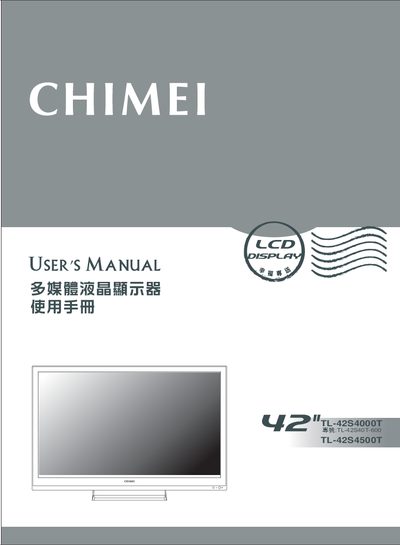

This manual provides instructions on how to use the TL-42S4000T and TL-42S4500T multimedia LCD displays and includes important safety information.
This manual covers important safety warnings, proper installation, and setup of the Multimedia TL-4284000T LCD Display. It explains how to mount the unit, connect power and video sources, and avoid hazards such as moisture, heat sources, and improper power cords.
The guide also details cleaning and maintenance procedures, remote‑control usage, connector descriptions, and a complete specification table for the display’s screen size, resolution, brightness, and power requirements.
| Active Area/Screen Size | 930.24 (H) x 523.26 (V) (42.02" diagonal) |
|---|---|
| Aspect Ratio | Widescreen 16:9 |
| Maximum Pixels | 1920(H) x 1080(V) |
| Backlight Lamp Life | 50,000 hrs (min.) |
| LCD Mode | SMVA |
| Brightness | 500 nits (Typ) |
| Contrast Ratio | 4000:1 (Typ) |
| Response Time | 6.5 ms (gray to gray average) (Typ) |
| HDMI Input | 1 x HDMI |
| Power Consumption (max) | 230 W |
| Built‑in Speaker | 80 W, 10 W x2 (max.) |
Use a soft ultra‑thin fiber cloth to wipe the screen, avoid thick fiber cloths, and never use alkaline or acidic cleaners.
The display uses a polarized or grounding type plug; the polarized plug has two flat pins (one wide, one narrow) and the grounding plug adds a round grounding pin.
Do not install near heat sources, moisture, or in bathrooms; keep at least 10 cm clearance around ventilation openings and avoid placing the unit on unstable surfaces.
