The TLV277x CMOS operational amplifier family combines high slew rate and bandwidth, rail-to-rail output swing, high output drive, and excellent dc precision.
The TLV277x CMOS operational‑amplifier family combines a 10.5 V/µs typical slew rate with a 5.1 MHz typical gain‑bandwidth product, rail‑to‑rail output swing and low‑distortion drive into 600‑Ω loads. It operates from a single 2.5 V to 5.5 V supply and is available in multiple small‑outline packages for automotive‑grade and portable applications.

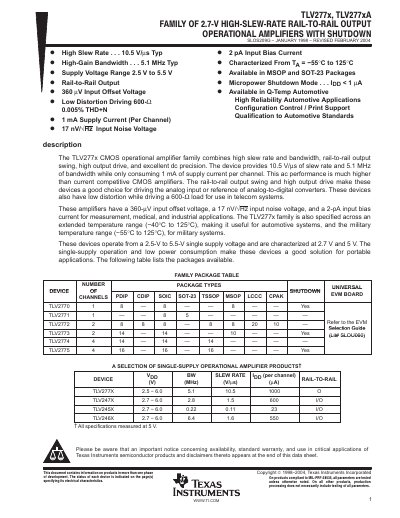

The datasheet provides detailed absolute‑maximum ratings, electrical characteristics, pin‑out diagrams, and package options (SOT‑23, MSOP, DIP, etc.). It also lists shutdown current below 1 µA, making the device suitable for low‑power designs.
| Slew Rate (typ) | 10.5 V/µs |
|---|---|
| Gain‑Bandwidth Product (typ) | 5.1 MHz |
| Supply Voltage Range | 2.5 V to 5.5 V |
| Input Offset Voltage (typ) | 360 µV |
| Input Bias Current (typ) | 2 pA |
| Shutdown Current | < 1 µA |
The TLV277x family has a typical slew rate of 10.5 V/µs.
It provides a typical gain‑bandwidth product of 5.1 MHz.
The device operates from 2.5 V to 5.5 V single‑supply.
TLV277x is offered in SOT‑23, MSOP, and plastic DIP packages, among others.
