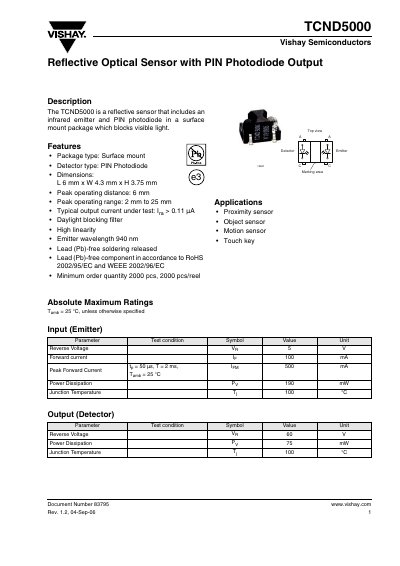

The TCND5000 is a reflective sensor with PIN photodiode output, including an infrared emitter and PIN photodiode, suitable for applications such as proximity sensing, object sensing, motion sensing, and touch keys.
The TCND5000 is a reflective optical sensor that integrates an infrared emitter and a PIN photodiode in a surface‑mount package that blocks visible light. It provides a peak operating distance of 6 mm, a peak operating range of 2 mm to 25 mm, and high linearity, making it suitable for proximity, object, motion, and touch‑key applications.
The datasheet lists detailed electrical characteristics such as a reverse voltage of 5 V, forward current up to 100 mA, power dissipation up to 190 mW, and operating temperature range from –40 °C to +85 °C. Precautions for use, storage conditions, and reflow solder profiles are also provided, along with compliance statements for RoHS and ODS policies.
| Package type | Surface mount |
|---|---|
| Detector type | PIN Photodiode |
| Dimensions | L 6 mm x W 4.3 mm x H 3.75 mm |
| Peak operating distance | 6 mm |
| Peak operating range | 2 mm to 25 mm |
| Typical output current | > 0.11 µA |
| Emitter wavelength | 940 nm |
| Reverse voltage (VR) | 5 V |
| Forward current (IF) | 100 mA |
| Power dissipation (PV) | 190 mW |
| Junction temperature (Tj) | 100 °C |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -40 °C to +100 °C |
| Soldering temperature | 260 °C |
The TCND5000 has a peak operating distance of 6 mm.
The infrared emitter operates at a wavelength of 940 nm.
The device should be stored between –40 °C and +100 °C.
Yes, the TCND5000 is lead‑free and complies with RoHS 2002/95/EC and WEEE 2002/96/EC.
