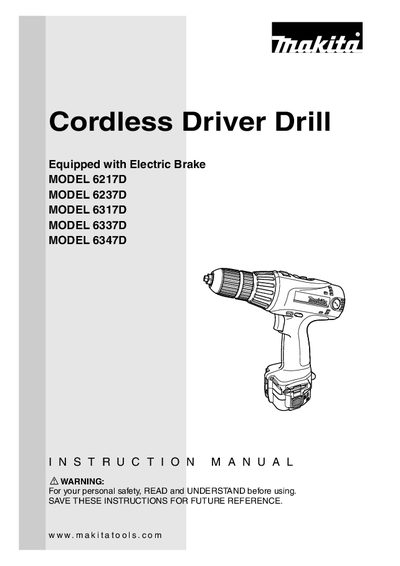

This is a manual for Makita 6217D cordless drill, including specifications, safety instructions, maintenance and care.
This manual covers important safety rules for using Makita cordless driver drills, including keeping the work area clean, wearing eye protection, and avoiding explosive atmospheres. It also explains proper handling of the battery cartridge, charger usage, and the electric brake function.
The specifications section lists capacities, no‑load speeds, overall length, net weight, and battery charger details for each model. Functional descriptions describe the switch trigger, reversing switch, speed change lever, and how to insert or remove the battery cartridge. Service and warranty information are provided at the end of the document.
| No load speed (high) RPM | 0‑1,300/min |
|---|---|
| No load speed (low) RPM | 0‑400/min |
| Overall length | 233 mm (9‑1/8") for 6217D/6237D |
| Net weight | 1.9 kg (4.2 lb) for 6217D |
| Charging time (12 V model) | 45 min |
Keep the work area clean and well lit, wear eye protection, avoid explosive atmospheres, keep bystanders away, and use the tool only with the specified battery pack.
Align the tongue on the battery cartridge with the groove in the housing and slide it in until it clicks and locks in place.
The electric brake stops the tool quickly after the trigger is released; if it does not stop promptly, have the tool serviced at a Makita service center.
