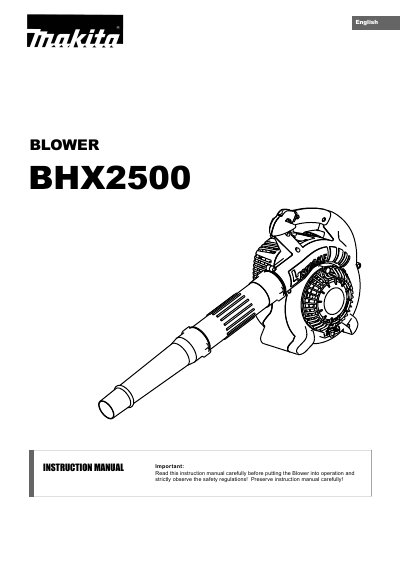

This is a product manual for the BHX2500 blower. It introduces the safety instructions, operating methods, and maintenance methods for the product.
This manual explains how to safely operate the Makita BHX2500 blower, covering safety instructions, required protective equipment, and proper handling of fuel and oil. It also details the assembly of blower pipes and vacuum attachments, as well as start‑up and shutdown procedures.
Technical specifications, part designations, troubleshooting tips, and warranty service information are included to help users maintain the blower and resolve common issues.
| Mass (without blower pipe) | 4.5 kg |
|---|---|
| Dimensions (L × W × H) without pipe | 350 × 231 × 368 mm |
| Max engine speed | 7,800 rpm |
| Idling speed | 3,500 rpm |
| Engine displacement | 24.5 mL |
| Fuel tank capacity | 0.52 L |
| Engine oil type | SAE 10 W‑30, API Class SF or higher |
| Engine oil volume | 0.08 L |
| Carburetor | WALBRO WYL diaphragm carburetor |
| Ignition system | Solid‑state ignition |
| Spark plug | NGK CMR6A |
| Electrode gap | 0.7 – 0.8 mm |
The blower requires automobile gasoline, either regular or premium gasoline.
Start the blower only after the tool is fully assembled and use the starter handle; do not use any other starting methods.
