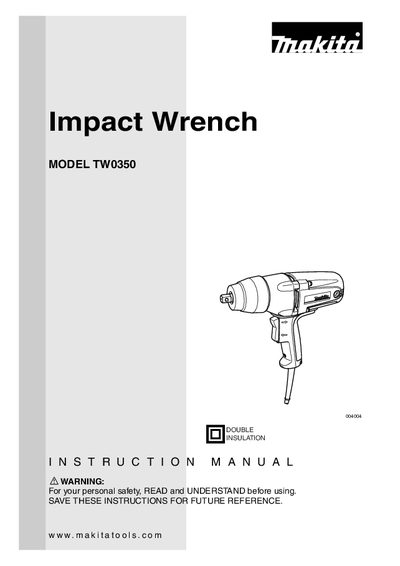

This document is an instruction manual for the Makita Impact Wrench model TW0350. The document provides safety warnings, product specifications, and usage instructions.
This manual explains how to safely operate, maintain, and service the Makita TW0350 impact wrench. It includes specifications, safety rules, functional description, operation procedures, and warranty information.
Key sections cover specifications, general and electrical safety, tool use and care, functional description, operation, maintenance, accessories, and factory service center contacts, helping users get the most out of the tool while minimizing risk.
| Standard bolt size | M12 - M22 (1/2"-7/8") |
|---|---|
| High tensile bolt capacity | M12 - M16 (1/2"-5/8") |
| Square drive | 12.7 mm (1/2") |
| No load speed | 2,000 RPM |
| Impacts per minute | 2,000 |
| Maximum fastening torque | 350 N·m (258 ft‑lbs) |
| Overall length | 283 mm (11‑1/8") |
| Net weight | 2.9 kg (6.4 lbs) |
The no‑load speed is 2,000 RPM.
The tool can deliver up to 350 N·m (258 ft‑lbs) of fastening torque.
Replace the carbon brushes when they wear down to the limit mark, and replace both brushes at the same time.
Always ensure the tool is switched off and unplugged before adjusting, checking functions, or performing maintenance.
