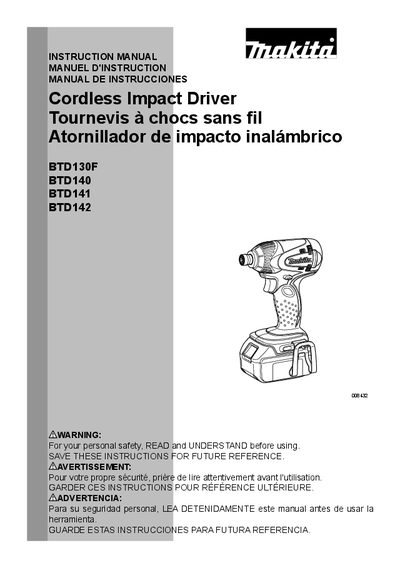

This document is about the Makita BTD130F, BTD140, BTD141, BTD142 cordless impact drivers product manual, introducing the features and characteristics of the product, including machine screw, standard bolt, high tensile bolt, no load speed (RPM), impacts per minute, overall length, net weight, rated voltage, standard battery cartridge.
This manual covers safety rules, proper use, and maintenance for the Makita BTD130F, BTD140, BTD141 and BTD142 cordless impact drivers. It includes general and specific safety instructions, battery‑cartridge handling, functional description, assembly, operation, and accessory information.
Technical specifications such as no‑load speed, impacts per minute, overall length, net weight, rated voltage and compatible battery cartridges are listed, along with detailed procedures for inserting bits, using the reversing switch, and replacing carbon brushes. Warranty and service information are also provided.
| No load speed (RPM) | 0-2,400 r/min |
|---|---|
| Impacts per minute | 0-3,200 |
| Overall length | 146 mm (5-3/4") |
| Net weight | 1.4 kg (3.1 lbs) |
| Rated voltage | 14.4 V DC |
| Standard battery cartridge | BL1430, BL1815, BL1830 |
Switch off the tool, align the tongue on the battery cartridge with the groove in the housing, slide it in until it clicks and the red part is no longer visible.
