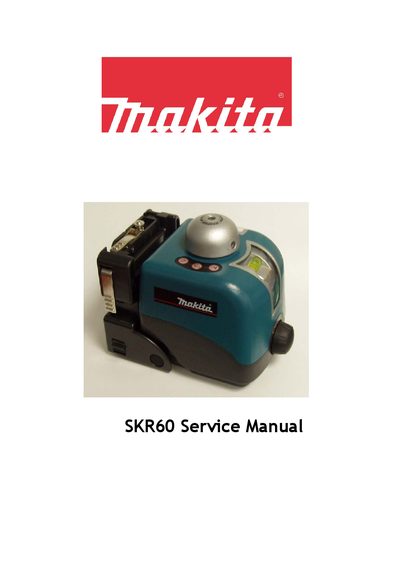

Makita SKR60 Manual Laser Service Manual, introduces the features and usage of the laser.
This service manual covers the Makita SKR60 compact laser level. It includes an introduction, full specifications, a description of the laser keypad, and detailed horizontal and vertical setup procedures. The document also explains how to disassemble the unit, replace parts, and perform routine checks.
A spare‑parts list and required tools are provided at the end of the manual, helping technicians service the device efficiently. All instructions are written for English‑speaking users and include safety and performance details such as IP65 rating and battery life.
| Recommended Operational Range | 200 ft (60 m) |
|---|---|
| Leveling Accuracy | 3/8″ at 100 ft (10 mm at 30 m) |
| Scanning Angle | 2°, 8°, 25° |
| Power Source | 3 × AA alkaline batteries |
| Battery Life | 40 hours |
| Rotation Speed | 0, 80, 150, 600 rpm |
| Ingress Protection | IP65 (rain and dustproof) |
| Laser Beam | 635 nm, Class IIIR |
| Dimensions | 170 × 130 × 130 mm |
| Weight | 2.6 lb (1.2 kg) |
| Tripod Mount | Standard 5/8"‑Il |
| Remote Control | Built‑in receiver |
The SKR60 is recommended for use up to 200 ft (60 m) in diameter.
It runs on three AA alkaline batteries and provides up to 40 hours of operation.
