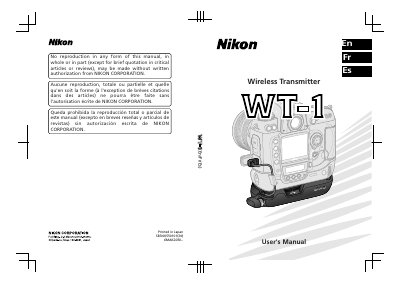

This manual introduces the features and usage of the Nikon Wireless Transmitter.
This manual explains how to install and use the Nikon WT-1A wireless transmitter with compatible Nikon digital cameras. It includes safety precautions, hardware description, and step‑by‑step instructions for configuring wireless LAN, uploading images, and troubleshooting.
The document also lists technical specifications such as dimensions, weight, power consumption, frequency range, and supported wireless standards, helping users understand the device’s capabilities and regulatory compliance.
| Dimensions (W × H × D) | 146.5 mm × 34.5 mm × 65.5 mm |
|---|---|
| Weight | 220 g (without antenna) |
| Operating Temperature | 0 °C – 40 °C |
| Standby Power Consumption | 150 mA max (13.5 V input) |
| Active Power Consumption | 220 mA max (13.5 V input) |
| Frequency Range (WT‑1A) | 2412 MHz – 2462 MHz (11 channels) |
| Typical Range (standard antenna) | ≈ 30 m |
| Supported Wireless Standard | IEEE 802.11b |
Do not immerse the device in water or expose it to rain, keep it dry, avoid using it near flammable gas, and never handle it with wet hands.
The WT‑1A complies with the IEEE 802.11b wireless LAN standard.
The WT‑1A operates on 11 channels within the 2412 MHz – 2462 MHz band.
