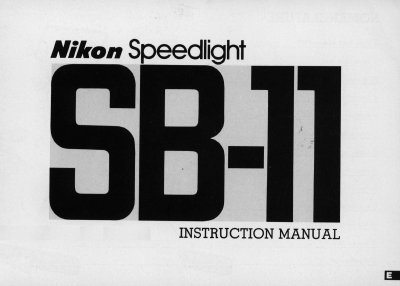

This is an instruction manual for a Nikon flash
This manual explains how to set up and operate the Nikon SB-11 Speedlight, including attaching the bracket, loading batteries, and connecting sync cords. It also details each control, such as the exposure calculator dial, ready‑light, and sensor unit, and provides a synchronization chart for compatible Nikon SLR cameras.
Additional sections cover battery performance tips, care instructions, and a full list of specifications. The document includes diagrams of the flash head, adapters, and mounting accessories, helping users achieve optimal lighting results.
| Guide number (ASA/ISO 100) | 36 (25 with Wide‑Flash Adapter) |
|---|---|
| Horizontal angle of coverage | 560° (670° with SW‑3) |
| Vertical angle of coverage | 400° (480° with SW‑3) |
| Automatic recycling time | 0.6‑9 m (2‑30 ft) at f/4 |
| Weight | ≈860 g |
| Dimensions (H × W × D) | 276 mm × 104 mm × 118 mm |
| Power source | Eight 1.5 V AA‑type penlight batteries |
Place the camera in the bracket with the bracket mounting pin on the same side as the rewind knob, then screw the attachment screw into the camera's tripod socket to secure them together.
The guide number is 36 (25 with the Wide‑Flash Adapter) at ASA/ISO 100.
