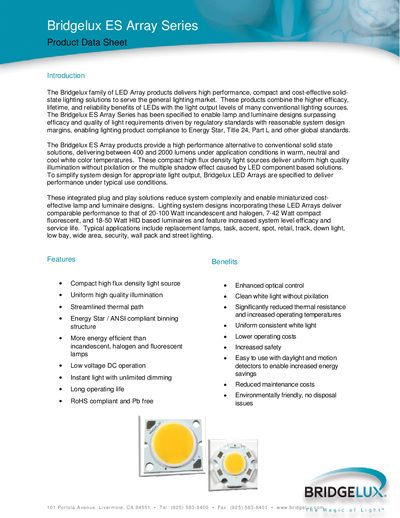

The Bridgelux ES Array Series Product Data Sheet introduces the Bridgelux family of LED Array products, which provide high performance, compact, and cost-effective solid-state lighting solutions to meet the general lighting market's demands. These products combine the higher efficacy, lifetime, and reliability benefits of LEDs with the light output levels of many conventional lighting sources. The Bridgelux ES Array Series has been specified to enable lamp and luminaire designs that surpass efficacy and quality of light requirements driven by regulatory standards with reasonable system design margins, enabling lighting product compliance to Energy Star, Title 24, Part L, and other global standards. The Bridgelux ES Array products provide a high performance alternative to conventional solid state solutions, delivering between 400 and 2000 lumens under application conditions in warm, neutral, and cool white color temperatures. These compact, high flux density light sources deliver uniform, high quality illumination without pixilation or the multiple shadow effect caused by LED component based solutions. To simplify system design for appropriate light output, Bridgelux LED Arrays are specified to deliver performance under typical use conditions. These integrated plug and play solutions reduce system complexity and enable miniaturized, cost-effective lamp and luminaire designs.
The ES Array Series from Bridgelux offers compact, high‑flux LED arrays delivering 400–2000 lm in warm, neutral and cool white. These plug‑and‑play devices simplify lamp and luminaire design while meeting Energy Star, Title 24 and other global standards.
The data sheet includes product nomenclature, lumen maintenance, environmental compliance, UL recognition, electrical and optical characteristics, mechanical dimensions, and design resources such as application notes and CAD models.
| Color temperature (CCT) | 2850–7000 K |
|---|---|
| Thermal resistance (case) | 0.5–1.4 °C/W |
| Lumen maintenance (50 k h) | >70 % of initial output |
Bridgelux projects that the LED arrays will retain greater than 70 % of their initial lumen output after 50 000 hours of operation.
The Bridgelux ES Array product became UL Recognized on 31 March 2010 (UL file E333389).
