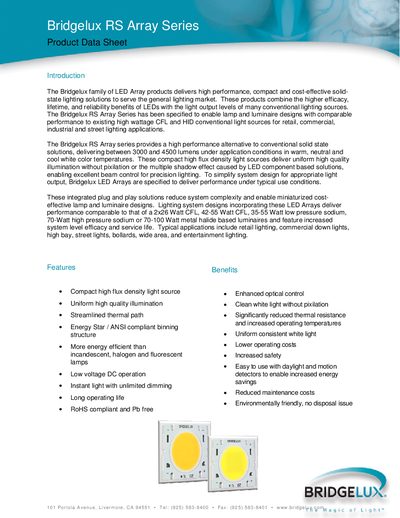

Bridgelux RS Array Series Product Data Sheet Introduction
The Bridgelux RS Array Series provides high‑flux LED arrays for retail, commercial, industrial and street lighting. Each array delivers 3000‑4500 lumens in warm, neutral or cool white, with low‑voltage DC operation and long service life.
The data sheet details part numbering, lumen maintenance expectations, environmental compliance, UL recognition, safety cautions, and key electrical, optical and thermal characteristics, plus design resources such as application notes and CAD models.
| Typical Luminous Flux (Warm White) | 3100 lm |
|---|
Bridgelux projects greater than 70 % lumen maintenance after 50,000 hours when the case temperature is kept at or below 70 °C.
The product became UL recognized on 31 March 2010 under UL file E333389.
